30M SC / APC To SC / APC G652D Simplex Fiber Patch Cord White Jacket High Dense Connection

Product Categories

HONGKONG INFINI CO.,LTD

Contact Now

30M SC / APC To SC / APC G652D Simplex Fiber Patch Cord White Jacket High Dense Connection

Model Number : PACH CORD

Certification : CE

Place of Origin : Shenzhen , China

MOQ : NO

Price : Contact us for the price

Payment Terms : T/T, Western Union

Delivery Time : 10-15 days upon receipt of payment

Packaging Details : PE Bags

type : SC

color : white

length : 30m

jacket : LSZH

Contact Now

30M SC / APC to SC / APC Single mode Simplex Fiber Optic Patch Cord White Jacket , LSZH

Description

Fiber optic patch cord is one of most commonly used components in fiber optic network.Fiber optic patch cords sometimes is also called fiber optic jumper or fiber optic patch cables.Generally there are two types of fiber optic patch cords:single mode fiber optic patch cords and multimode fiber optic patch cords.Here the word mode means the transmitting mode of the fiber optic light in the fiber optic cable core. usually single mode fiber optic patch cord are with 9/125 fiber glass and is yellow jacket, multi mode fiber optic patch cord are with 50/125 or 62.5/125 fiber glass and is orange or blue color.

Features

Low insertion loss, high return loss

High dense connection, easy for operation

High credibility and stability

Good in repeatability and exchangeability

		G.652	G.655	50/125μm	62.5/125μm
Attenuation(+20℃)	@850nm			≤3.0dB/km	≤3.3dB/km
	@1300nm			≤1.0dB/km	≤1.0dB/km
	@1310nm		≤0.40dB/km
	@1550nm	≤0.22dB/km	≤0.23dB/km
Bandwidth(Class A)	@850nm			≥500MHz·km	≥200MHz·km
Bandwidth(Class A)	@1300nm			≥1000MHz·km	≥600MHz·km
Numerical Aperture				0.200±0.015NA	0.275±0.015NA
Cable cut-off wavelength		≤1260nm	≤1450nm

Product Tags:

fiber optic patch cord single mode

multimode fiber optic patch cord

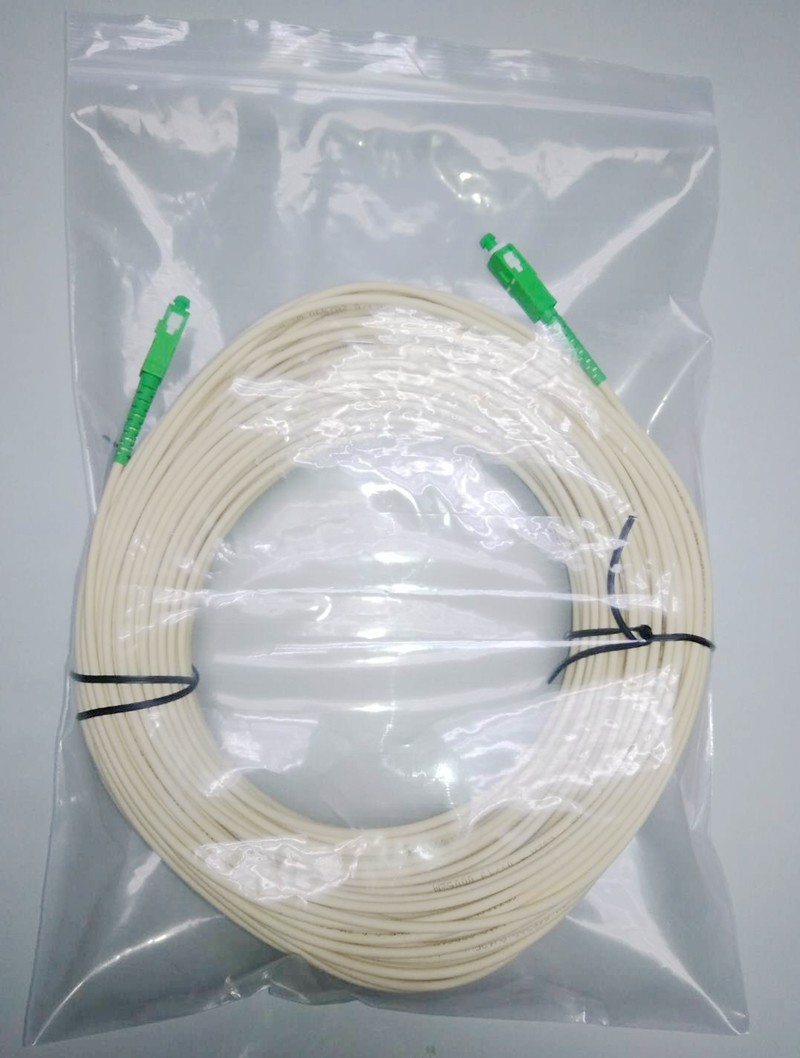

30M SC / APC To SC / APC G652D Simplex Fiber Patch Cord White Jacket High Dense Connection Images
