ADSS 9/125 Loose Tube Aerial Fiber Optic Cable Kevlar Yarn Double PE Jacket

Model Number : Optical Fiber Cable

Certification : CE

Place of Origin : Shenzhen,China

MOQ : NO

Price : Contact us for the price

Payment Terms : T/T, Western Union

Packaging Details : Drums

Application : Aerial

Fiber type : G652D

Color : Usually Black Color

Fiber count : 2-144 Core

Length : 2KM,optional

Jacket material : PE

Operating temperature : -40°C to + 70°C

Strengthen member : FRP or Steel

Contact Now

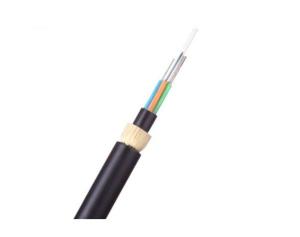

ADSS 9/125 Loose Tube Aerial Fiber Optic Cable Kevlar Yarn Double PE Jacket

ADSS cable is a type of optical fiber cable that is strong enough to support itself between structures without using conductive metal elements. It is used by electrical utility companies as a communications medium, installed along existing overhead transmission lines and often sharing the same support structures as the electrical conductors. ADSS cable is designed to be lightweight and small in diameter to reduce the load on tower structures due to cable weight, wind, and ice.

Feature

The lifespan is over 20 years,

Reliable performance of moistureproof and waterproof ,

Central strength member FRP gives high tensile strength,

PE sheath ensures safety of cable in high voltage environment,

All-dielectric structure and light weight provide easy installation and good electromagnetic resistance

Number of fiber	12-144core
Moisture Barrier	Water blocking system
Central strength member	material	FRP/FRP with PE
Central strength member	size	2.2mm
Tube-filling	Tube filling compoun
filler	PP tube/ PVC tube
Inner sheath	material	PE
Loose tube	material	PBT
Loose tube	diameter	Ф2.2(outer/inner)
Outer armored	material	Aluminium tape/Corrugated steel tape
